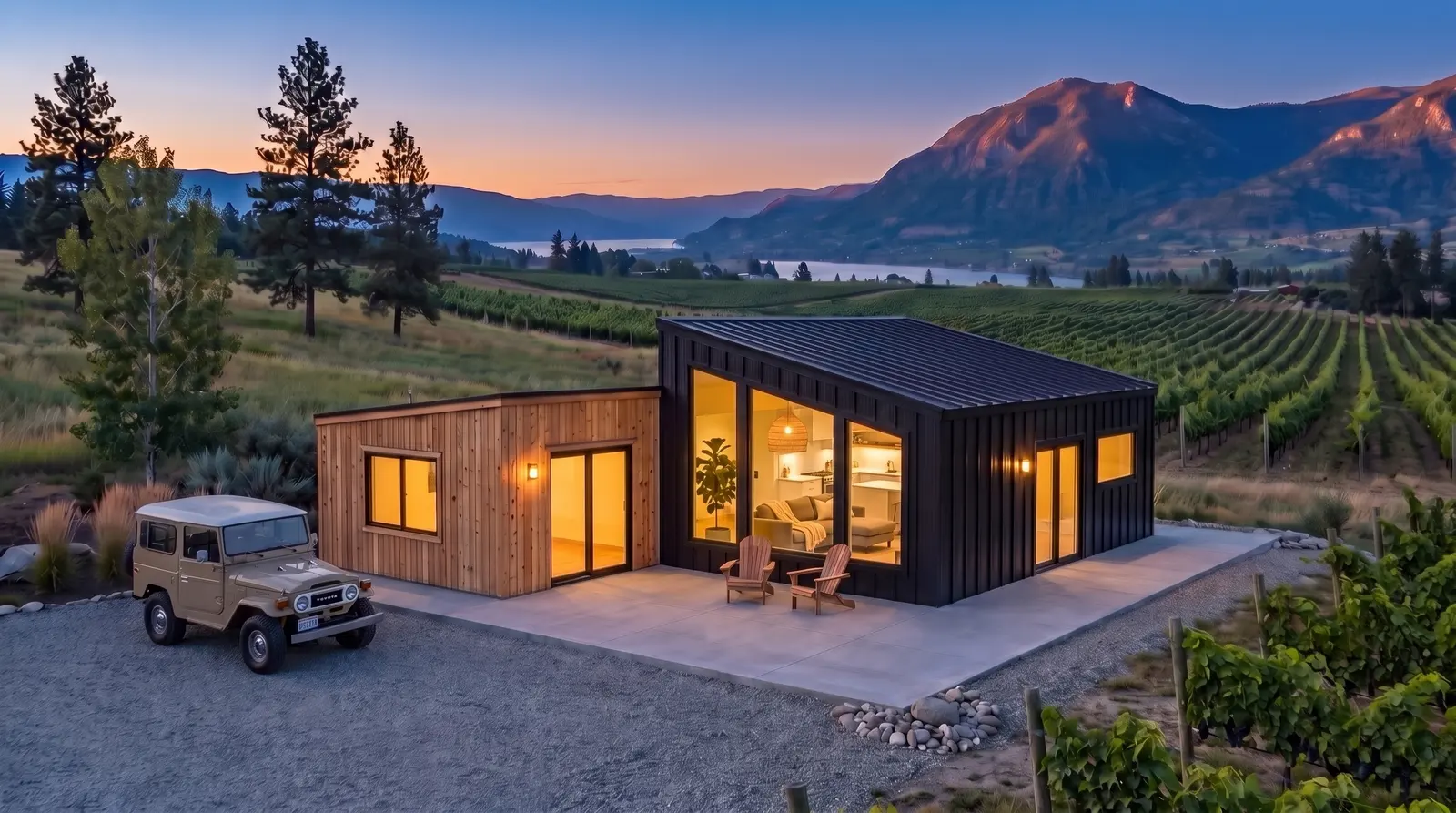

TRANSOM exteriorTRANSOM exterior at dusk

TRANSOM 2 Bedroom

Elevate Your Living With The Transom

2
Bedrooms
2
Bathrooms
1,056 sq ft
Living space
16′ × 24′ + 16′ × 42′
Footprint
2
Modules
CSA A277
Certified

Floor plans

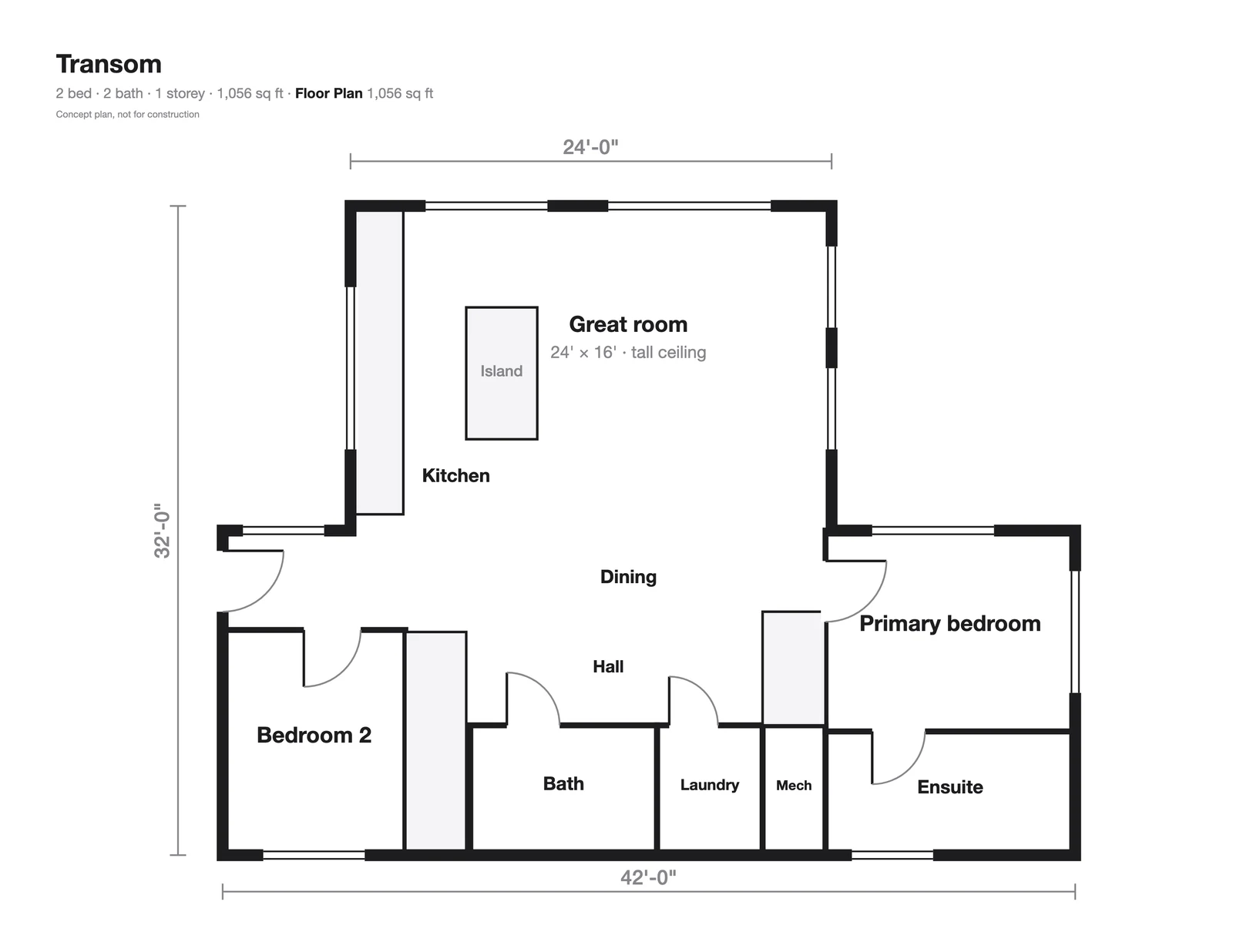

TRANSOM 2 Bedroom floor plan

About the TRANSOM 2 Bedroom

A bold, modern prefab home offering 1,056 sqft of open concept living space.

The result is a full 24-foot open-concept kitchen and living area flooded with natural light.

Big windows. Real light. A home that actually feels like one.

Layout1,056 sq ft

Modules of 16′ × 24′ and 16′ × 42′. The 24′ open kitchen and living area is in one; the other holds the primary bedroom with ensuite, a second bedroom, the second full bathroom, laundry and mechanical off a hall.

Specifications

Bathroom
Toilet, 48" Vanity, 36" x 60" Glass Walk-in Shower with Tile Walls and Acrylic Base, Hot Water On Demand
Kitchen
White Flat Door Cabinets With Soft Close Hardware (3/4" Birch Millwork), Large Center Island, Quartz Countertop, Functional Sink With Cutting Board Insert, 36" Stainless Fridge, 30" Range & Hood Fan, 24" Dishwasher
Heat & electrical
220v Wall Fan Heaters, 200 amp Panel, LED Interior Ceiling Pot Lights (dimmable), LED Exterior Accent Lighting, HRV System, Washer + Dryer
Framing
2x12 Floor Joists, 2x6 Walls, and 2x12 Rafters
Insulation — floors
R36 Insulation in Floors
Insulation — ceiling
R40 Insulation in Ceiling
Insulation — walls
R24 Insulation in Walls
Roofing & siding
Standing Seam Metal Roofing and Siding
Entryway & soffit
Cedar T&G Entryway and Soffit
Interior walls & ceiling
Pine T&G on Inside Walls and Ceiling
Flooring
Vinyl Flooring

Delivery, placement & installation

Delivery

We deliver all over Western Canada and specialise in off-grid and unique deliveries. Reach out and we'll talk through the options for your site.

Delivery is an additional cost and isn't included in the home price shown above.

Don't worry about the logistics. We coordinate all of the transport for you and handle it from start to finish.

Fill out the quote form below with your city, and we'll get back to you with an accurate quote for the home, delivery and placement.

Placement

All of our homes need a crane to offload them and set them on the foundation. It's a quick process: we usually start lifting mid-morning and we're done just after lunch. We have it down to a science.

The crane is an additional cost and isn't included in the home price shown above.

We coordinate the crane and placement right alongside your delivery, so it's all handled together. We've built great relationships with crane companies and use the best local crews to get the job done safely and efficiently. When needed, the crane company can visit your site ahead of delivery to plan the safest setup and access.

Foundation options

Our most common foundation options are:

  • Screw piles
  • ICF concrete crawl space
  • ICF concrete basement

The right option depends on your site and ground conditions, local jurisdiction, the design of the home and a few other factors. We'll help you find the best solution for your project.

The foundation and site work aren't included in the price shown above, and they need to be in place before we deliver.

The foundation and site work can be handled by your own contractors that you manage, or, for an additional cost, we can manage the entire project and take care of everything for you, start to finish. Whatever works best for you.

Installation & final hookups

When your home is craned onto the foundation, we structurally secure it in place. Because it's built as 2 modules, we also join the modules and finish the home on site, so it's one complete, water-tight, weather-tight build.

Final hookups for power, water, sewer and gas must be completed by a Red Seal certified contractor. They're simple connections, and a home is typically hooked up and ready in about a day. This isn't work we can complete ourselves.

If we're managing your project, we take care of everything: securing the home to the foundation, final flashing and foundation finishing, and coordinating every hookup.

If you're managing the project yourself, our scope ends once the home is delivered and structurally attached to the foundation. From there, you'll line up your own certified contractors for final foundation finishing, flashing and hookups.
